Chip Handling Systems
Steel Belt conveyors
Hinged steel belt conveyor is best suited for low coolant content and bushy and broken chips. Pitch sizes of 2.5 Inches (63 mm), 4 Inches (100 mm) and 6 inches (150 mm) are typically used for chip handling, depending on expected load. Special designs incorporating dimples, perforations and reinforcements are available to suit more demanding applications.Enquire Now

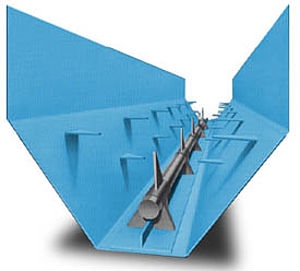

Push Bar Conveyors
The Push Bar Conveyor is the ideal solution where large quantities of bushy chips are carried over long distances. Large coolant flow can easily be handled; even small, cast-iron chips can be transported in this conveyor. Because of its reliability, high capacity and long conveying length of upto 170 meters this conveyor is widely used in the automotive and bearing manufacturing Industries. Lately the push bar conveyor has found use in the state-of-the-art F.M.S. plants.

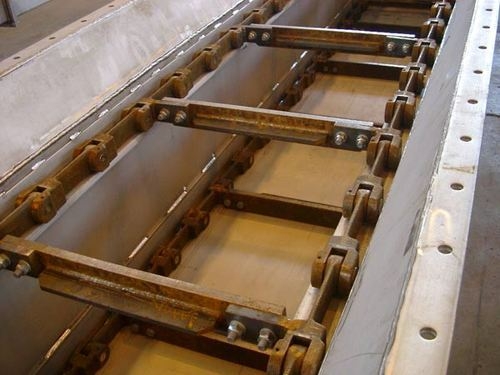

Drag Link Conveyor
Drag Link Conveyors are best suited for handling small, powder chips over long distance. Typically cast iron, brass or aluminium chips from machining operations that generate small or powder chips are well conveyed by this conveyor.Enquire Now
Chip processing Systems

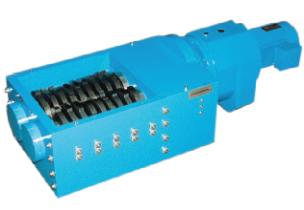

Chip Shredder & Crusher
Benefits of Chip Crushing:

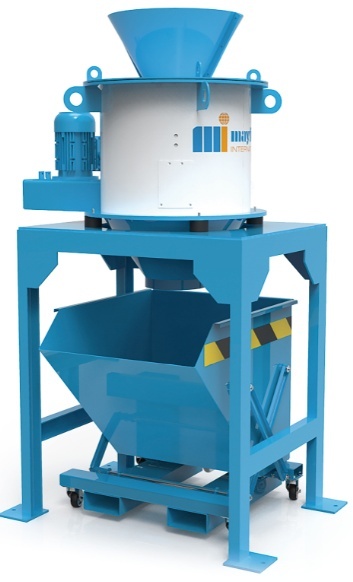

Chip Centrifuge - VBU
The present day machining practices make use of expensive oils which, without recovery, would result in a substantial increase in the cost factor, not to mention the increased threat to the environment. The VBU helps recover this expensive oil which can be reused either directly or after filtration depending on the machining activity. The relatively dry chips produced as a result of centrifuging fetch a much higher value during sale. Various sizes of VBUs are available to handle upto 5 tones per hour of processing capacity.

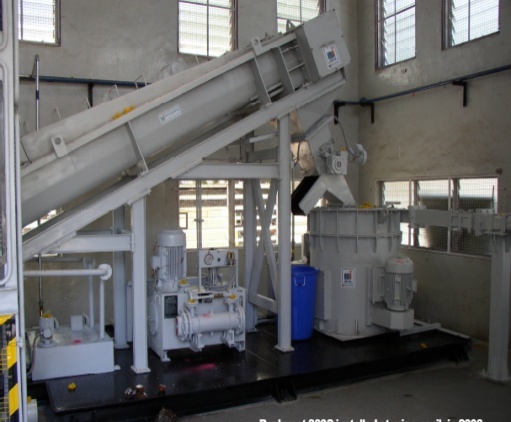

Integrated Chip Processing
The Reclamet-3000 is turnkey solution with a screw feeder, shredder, tramp material separator and centrifuge. The centrifuge is designed to enable pneumatic conveying of chips. Though compact in size, the Reclamet® can handle relatively high volumes of chips and coolant and is well suited for centralized applications. The Reclamet® comes with an option of overhead storage silos that facilitate easy and automated discharge of chips into trucks of containers. This system can be used for both emulsion and neat cutting oil applications.
Chip compactor is used to compact waste metal scrap produced from metal cutting operations like milling, turning, boring etc., The compactor uses force to press the scrap into briquettes of different sizes based on the applications. The force used to achieve this enables the briquettes to be highly dense, typically more than half the density of the original metal. Almost any type of material can be processed in this Chip Compactor.Enquire Now
