Miven Mayfran designs and builds tailor-made filtration plants for coolant and chip handing. Technology driven products backed by decades of experience, strong project management skills, and range of coolant filtration technologies to choose from, including gravity, pressure or vacuum filters, make Miven Mayfran the preferred partner of industry majors. These quality products from the Miven Mayfran stable, prolong coolant life thereby bringing down the cost of coolant management significantly.

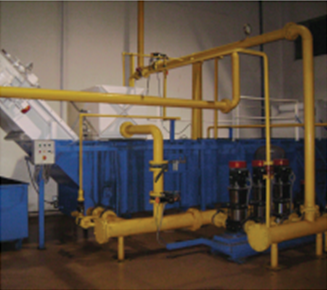

Vacuum Band Filtration
It works on the principle of suction of coolant through the filter media. Once a filter cake is formed on the surface of the media, a pre-set vacuum is created which triggers the indexing of the filter media. Advanced engineering and manufacturing techniques ensure that the vacuum seals are maintained perfectly.

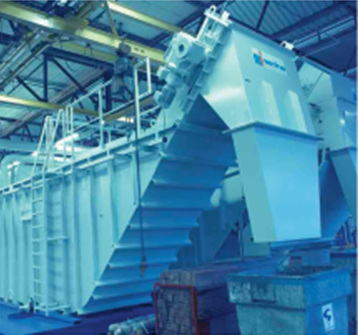

It has proven its efficiency, time and again-due to its reliability, flexibility installation options, as well as low operating costs for filtering coolant. The configuration of the Perma-Flow vacuum filter offers higher percentage purity without the use of filter consumables.

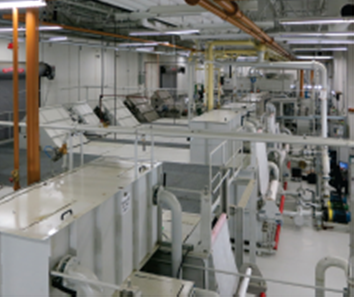

Here filtration takes place when coolant mixed with chips is passed through a media under pressure. Pressire bed filters deliver very good filtration quality for high flow rates.

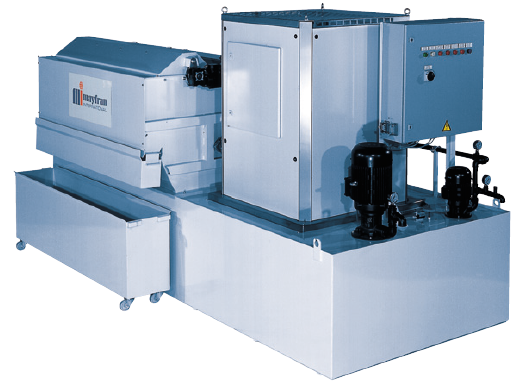

Rotary Belt Filtration
Rotary Belt Filter is a permanent media filter that brings the advantage of reduced operating cost. This low maintenance filter works on simple hydrostatic principle.
RBFs can be applied for machining operations including finish operations such as grinding. Suitable for single machine as well as centralized applications.Enquire Now

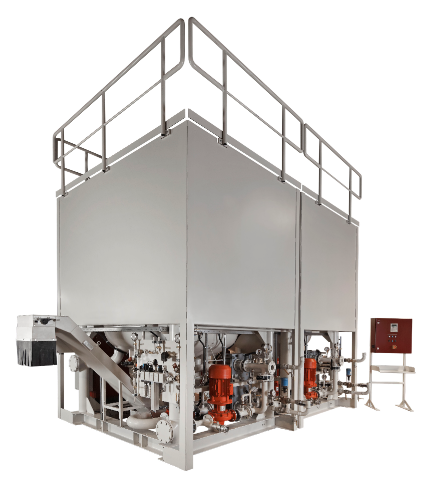

Pre-coat filtration is applied for filtration of pure oil in honing and reaming operations for by-pass operations in pure oil applications. This filter provides very high class filtration.

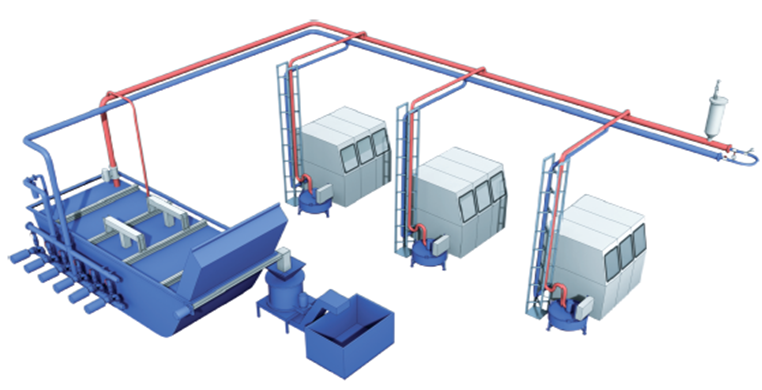

Viavent® is an automatic overhead closed loop chip and coolant transportation system. Chips and coolant are pumped through an overhead piping system and flushed into a central filter unit. The filtered coolant is then re-circulated back to the machines. The closed loop Viavent piping system maintains optimal coolant quality and minimizes evaporation. The Piping structure is so designed that the entire mixture of cups and coolant is flushed into the filter and there is absolutely no sedimentation of chips in the pipes.
