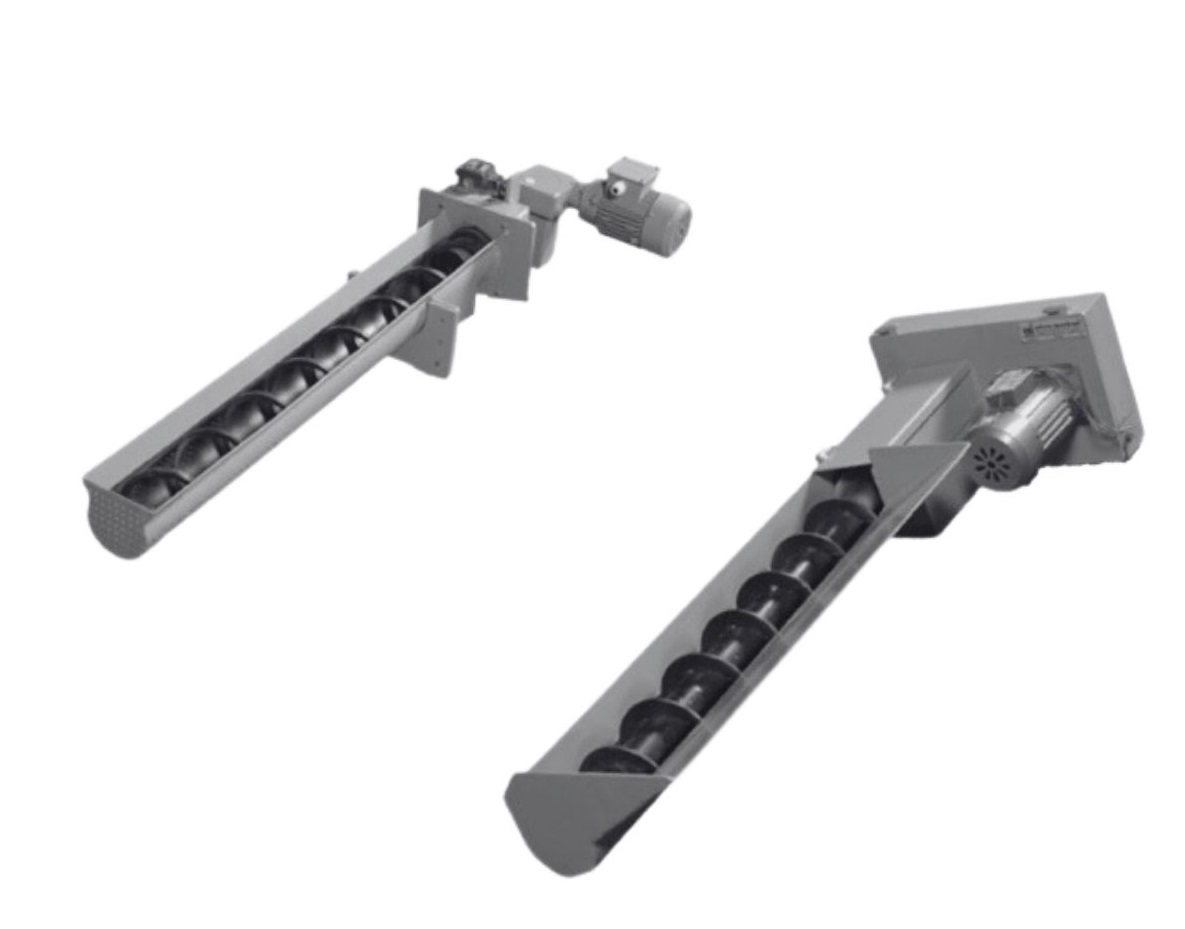

Miven Mayfran offers a wide range of conveyors for handling metal chips generated during metal cutting operation. Built to the renowned Mayfran standards, these conveyors effectively handle a variety of metal chips - long, short, curly, bushy, broken etc. and a variety of metals such as steel, cast iron, aluminium, brass etc. These chip conveyors are custom built to suit machine tool and the application for which they are intended to be used and they help keep uptime of your expensive, highly productive machine tool by continuously removing metal chips from the machine. Hinge Belt conveyor, Scraper conveyor, Magnetic conveyor, Screw conveyor and Coil conveyor are types of conveyors that are used for machine tool application.
Steel Belt Conveyors

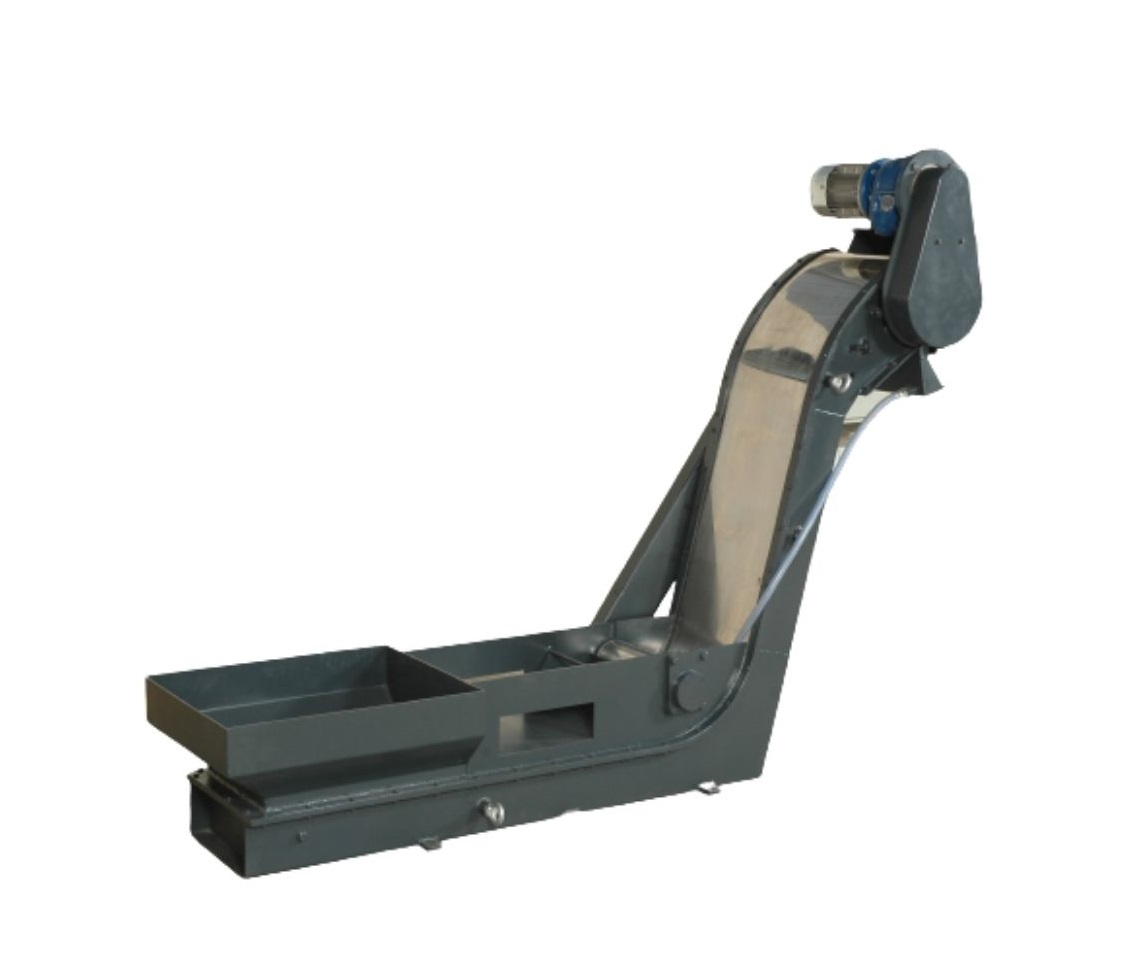

The hinged steel belt conveyors are suitable to handle short, long, curly and bushy wet or dry chips which can be integrated with machining centres, turning, milling, boring and special purpose machines.
Scraper conveyors, also known as drag conveyors, are ideal for dry cast-iron, wet cast-iron or aluminium applications. When coolant cleanliness is not critical, these custom-designed conveyors can be extended to the right lengths to move material exactly where you need it. Longer drag conveyors are available for central chip handling requirements or for infeed to chip processing solutions. Miven Mayfran’s drag conveyors are trusted across numerous industries and feature:
Magnetic conveyors can handle ferrous swarf only and are widely used in broaching, gear hobbing, gear shaping and milling machines.

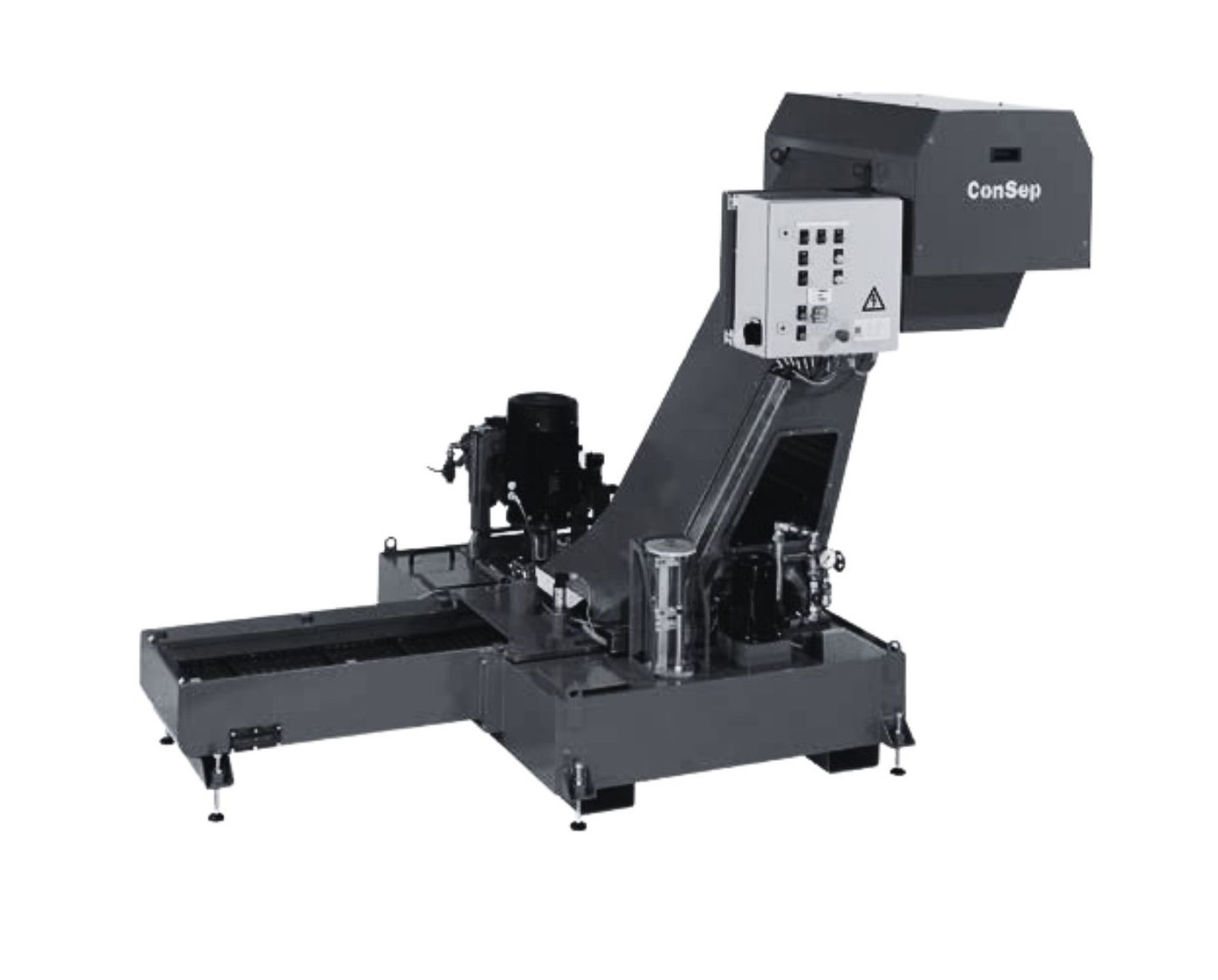

ConSep 1OOO uses a scraper-type conveyor integrated with a self-cleaning permanent media coolant cleaning drum. Separation is possible upto 1OO microns without any auxiliary filtration equipment.Enquire Now

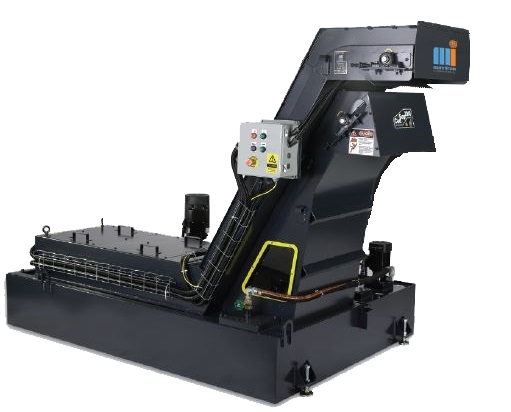

Miven Mayfran’s ConSep® 2000 Conveyor offers advanced chip removal and cleaning to manage multiple material types, including the more difficult to handle strings and turnings. The primary conveyor removes all chip types and sizes, and the lower drag-type separator conveyor removes fines that are passed through and carried back into the system by the primary conveyor. The ConSep® 2000 Conveyor features:

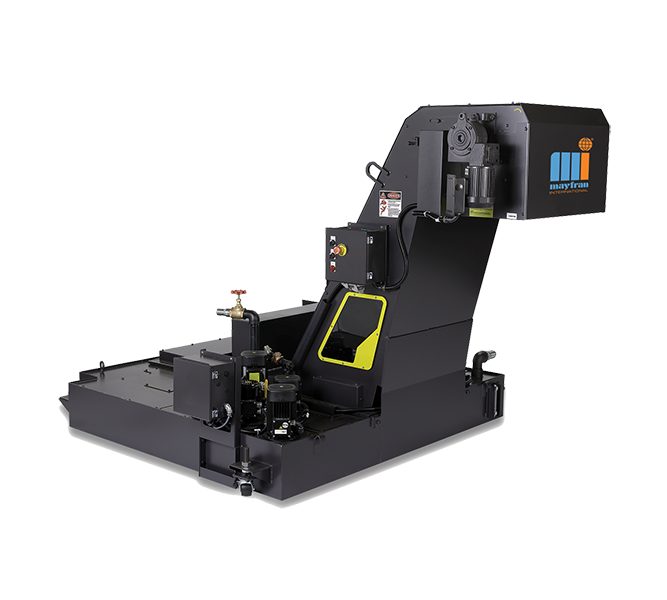

ConSep® 2000 II
Miven Mayfran’s ConSep® 2000 II is a single-belt version of the popular ConSep® 2000 conveyor that offers an integrated filtration chip and coolant system. Like its multi-belt counterpart, its unique design protects the drum filter, and its permanent self-cleaning filter media with backwash spray cleans coolant to 50-micron nominal. The ConSep® 2000 II also:
Miven Mayfran’s CleanSweep-RM conveyors are an ideal midrange chip conveyor solution. They feature proven coolant cleaning technology and effective chip handling and removal and have been trusted across a broad range of industries to deliver effective, efficient results. Compared to a basic hinge belt conveyor, the CleanSweep-RM helps reduce maintenance needs to help you save on labour costs and improve machine uptime. The CleanSweep-RM is well suited to a range of demanding applications and includes the following features:

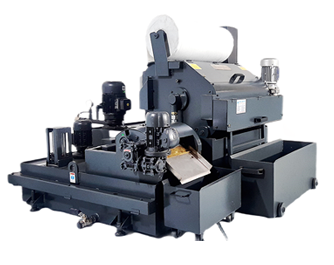

Compact Band Coolant Filtration System
Miven Mayfran standalone coolant filtration systems are designed with the advanced engineering and manufacturing techniques. Compact band coolant filters are gravity filters with an edge over regular flatbed filters in terms of foot print. Compact and cost effective, this filter is suitable for a single machine or group of machines. Compact paper band coolant filter systems are perfect solution for cleaning coolant emulsions and neat cutting oil. These systems can also be supplied with magnetic coolant separators and chilling units for superior level of coolant filtration. Capacity Available from 50lpm to 600lpm. This can effectively handle machining as well as grinding applications.Special Features:

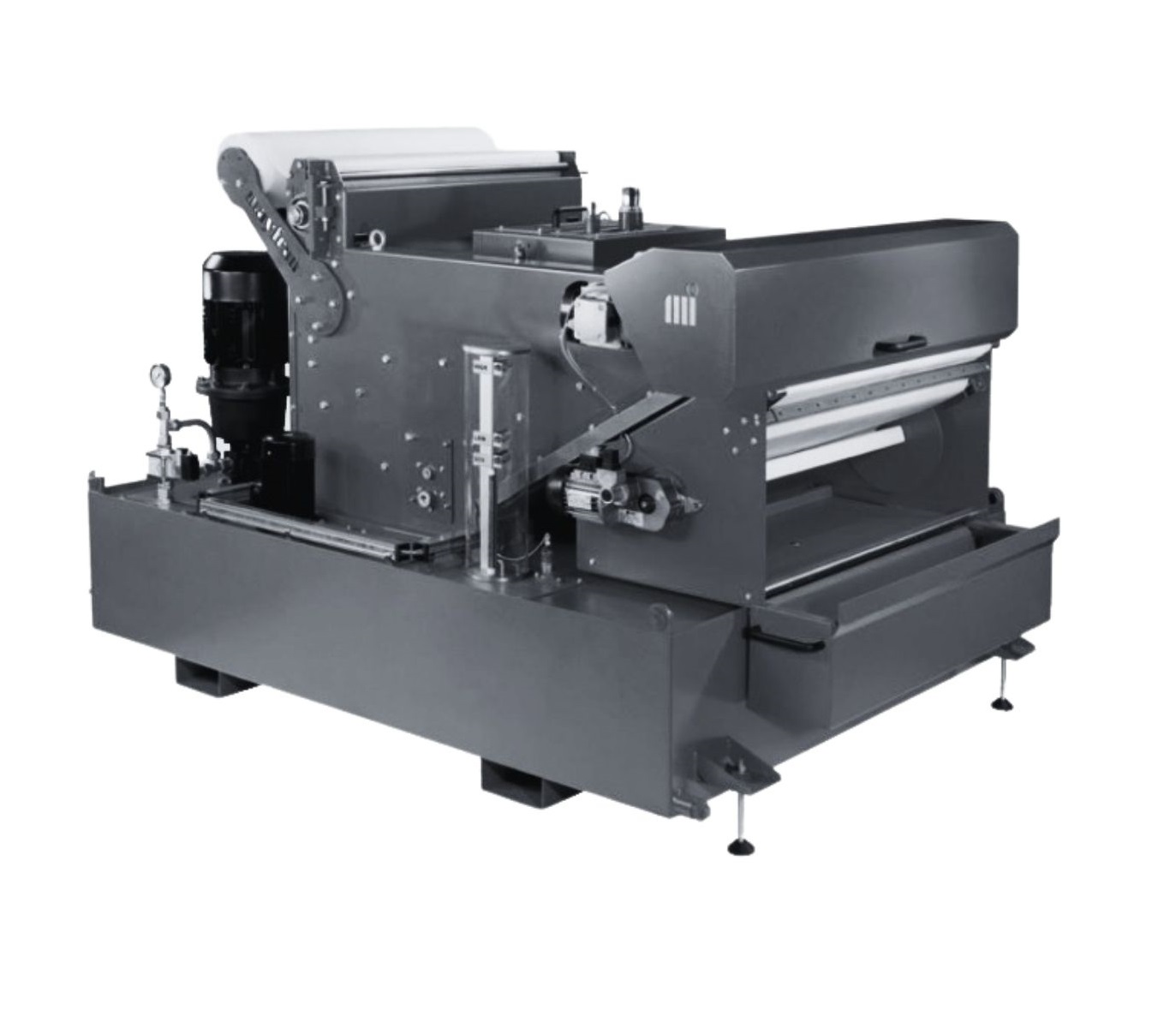

Flat Bed Coolant Filtration System
Flatbed filter is a simple filter unit for a single machine application. This filter works on gravity principle. This coolant filtration system is easy to maintain and has a long service life, making it one of the most cost-effective solution for filtration needs.Special Features:
